TwoBusGensal Validation

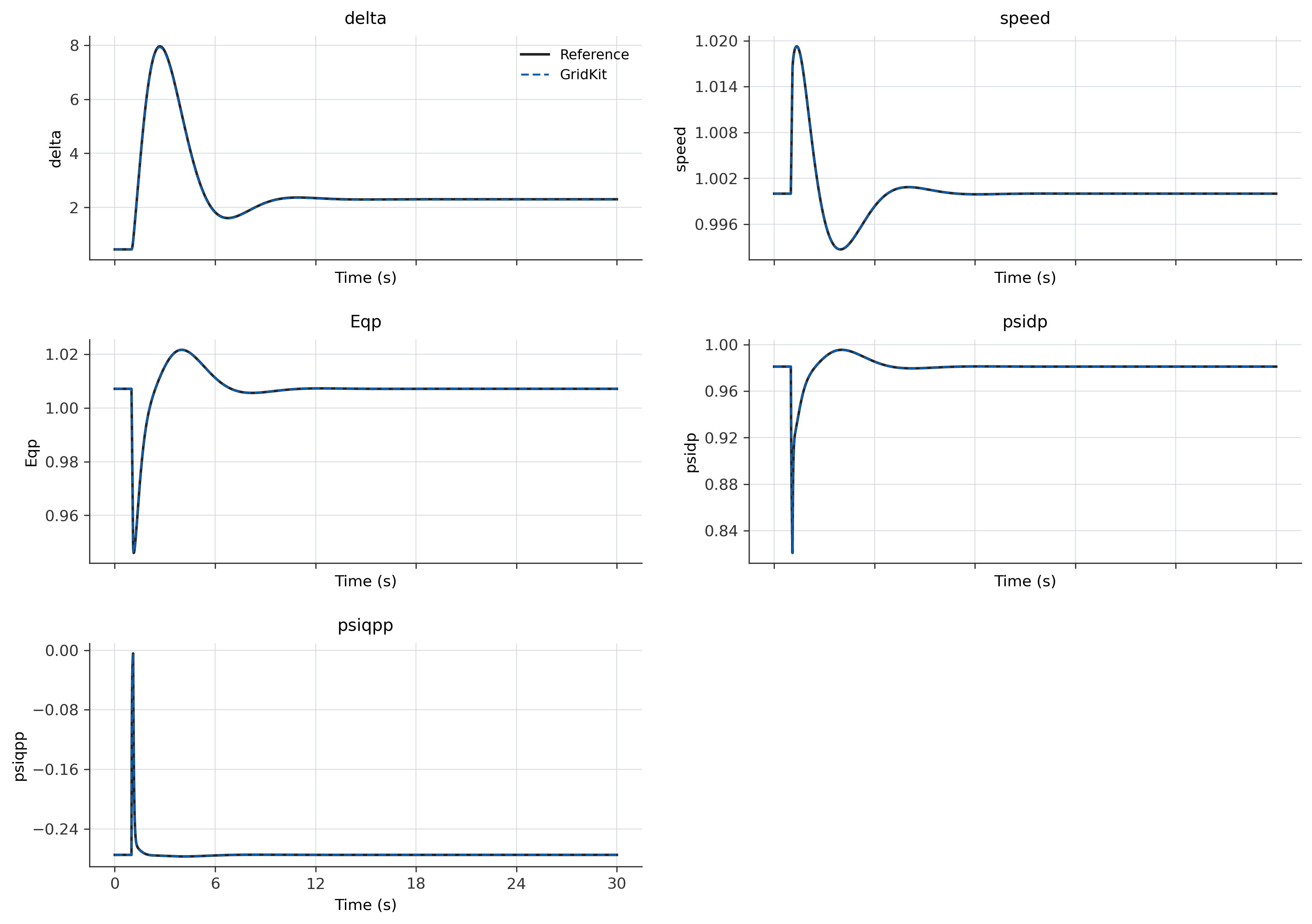

This study uses the reusable TwoBusGensal case to compare GridKit’s GENSAL response against a PowerWorld reference.

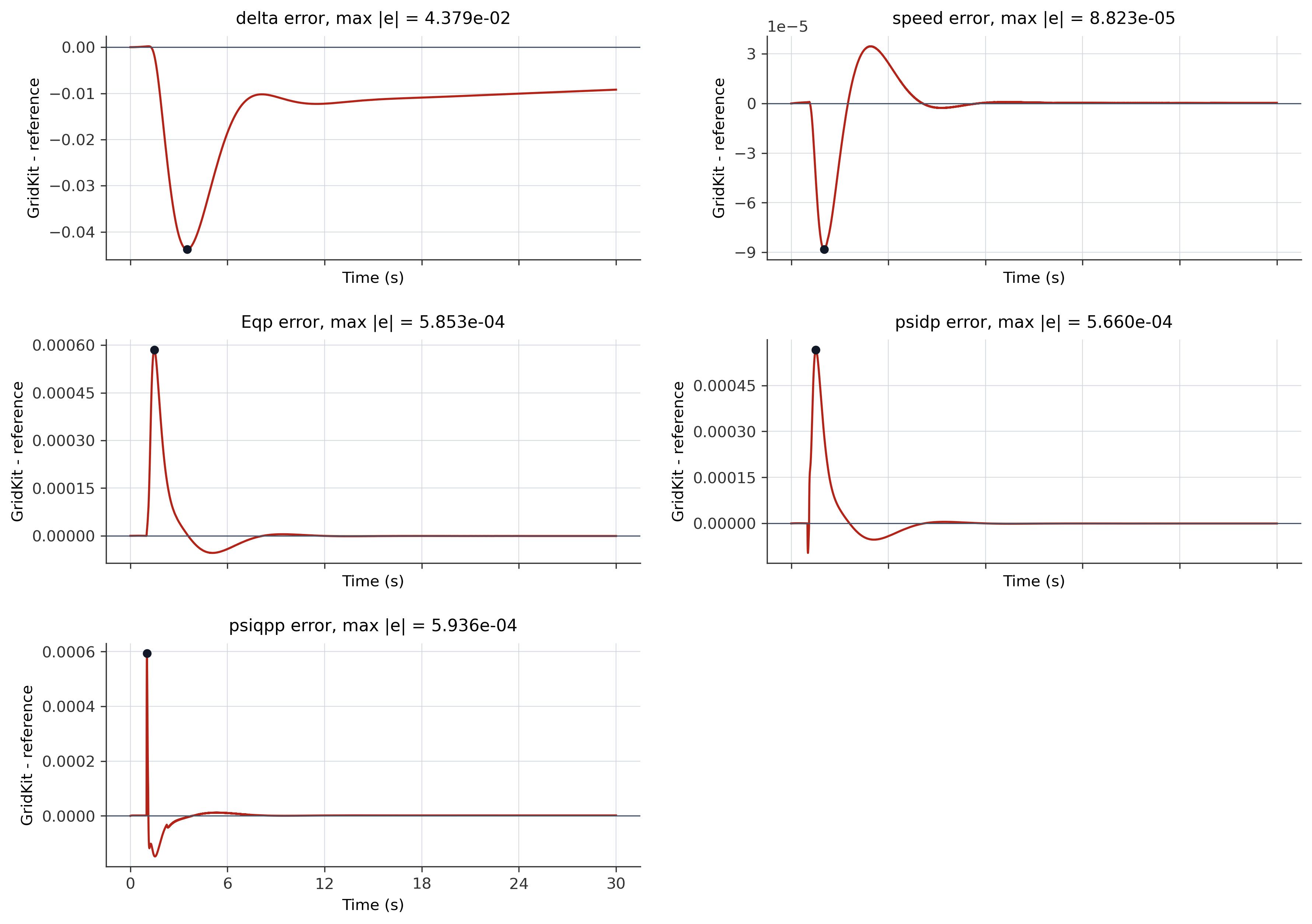

The case contains a GENSAL machine on Bus 1, a 100 MW resistive load on Bus 2, a lossless tie line with X = 0.1 p.u., and a temporary bus fault on Bus 2. The monitored machine states are compared against reference/TwoBusGensal.ref.csv.
