ACTIVSg2000 Validation

This study uses the reusable ACTIVSg2000 case.

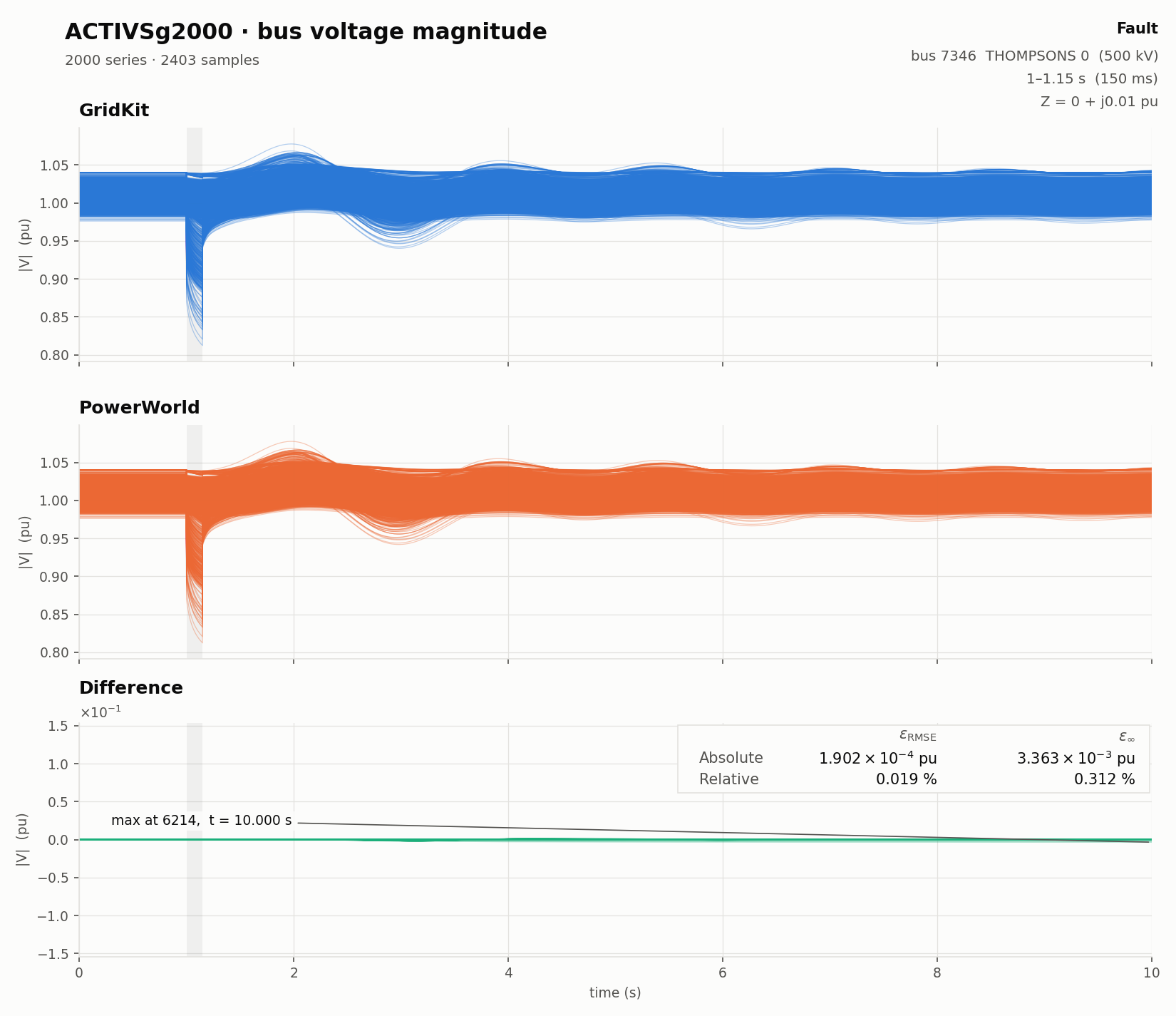

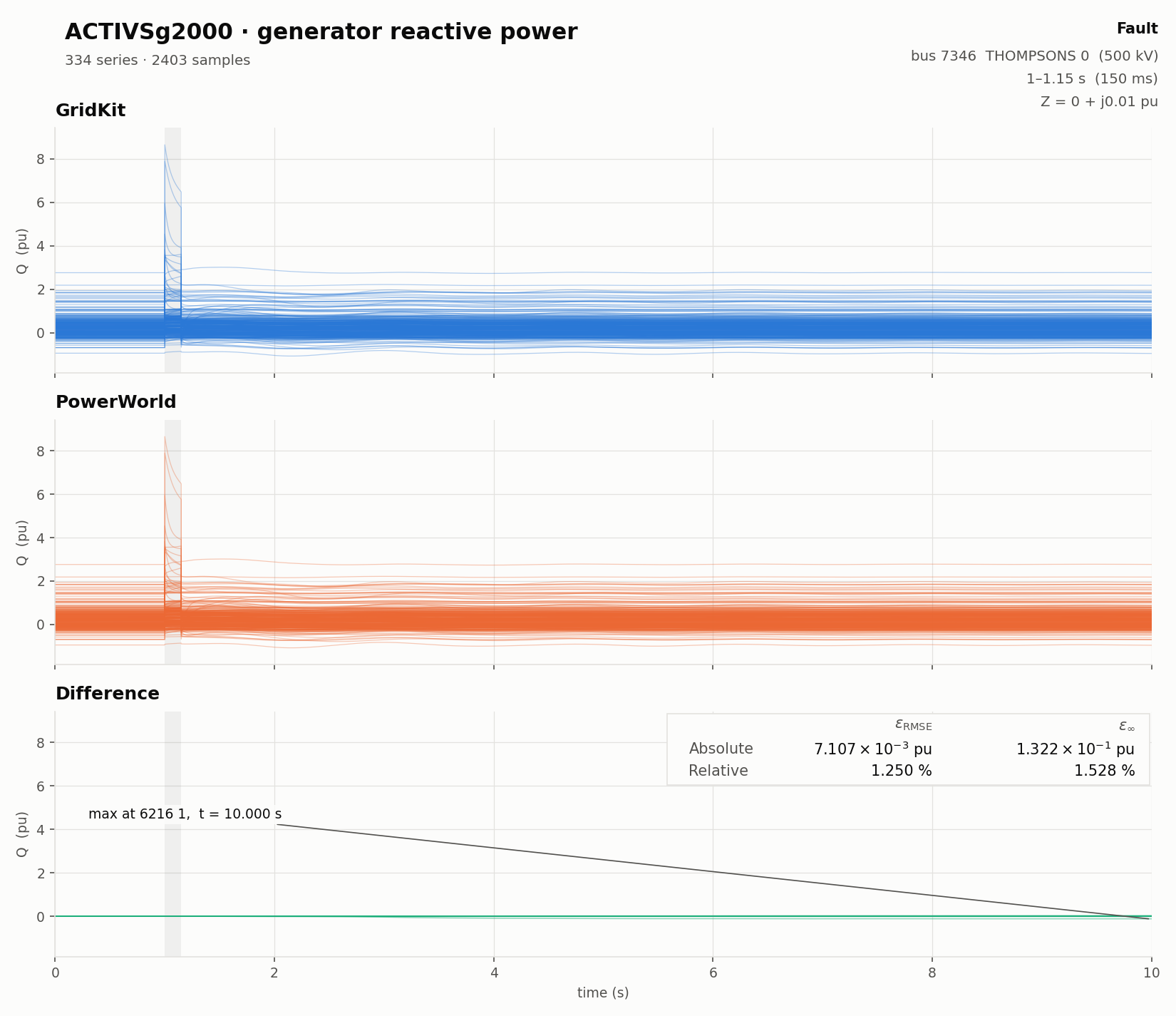

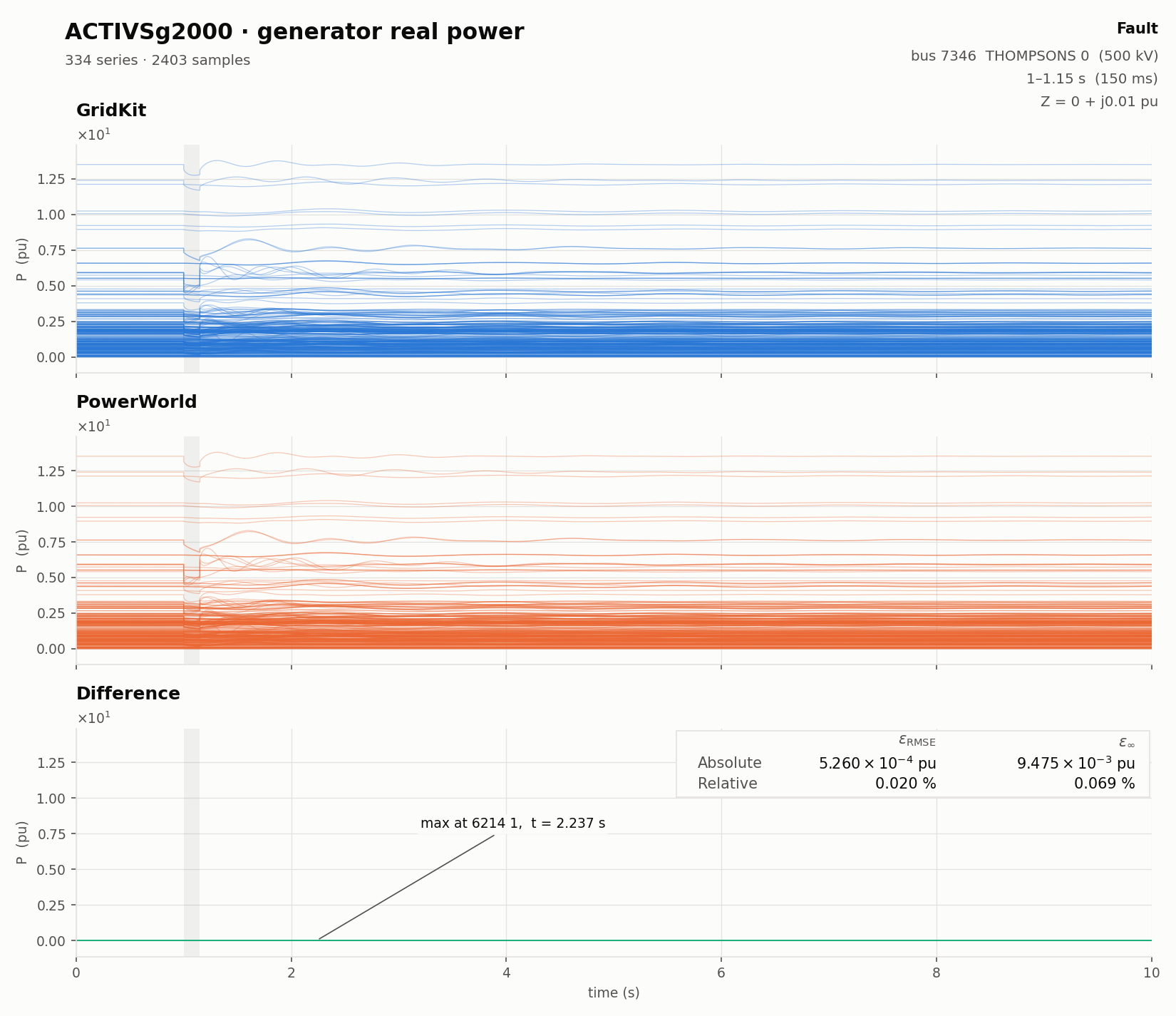

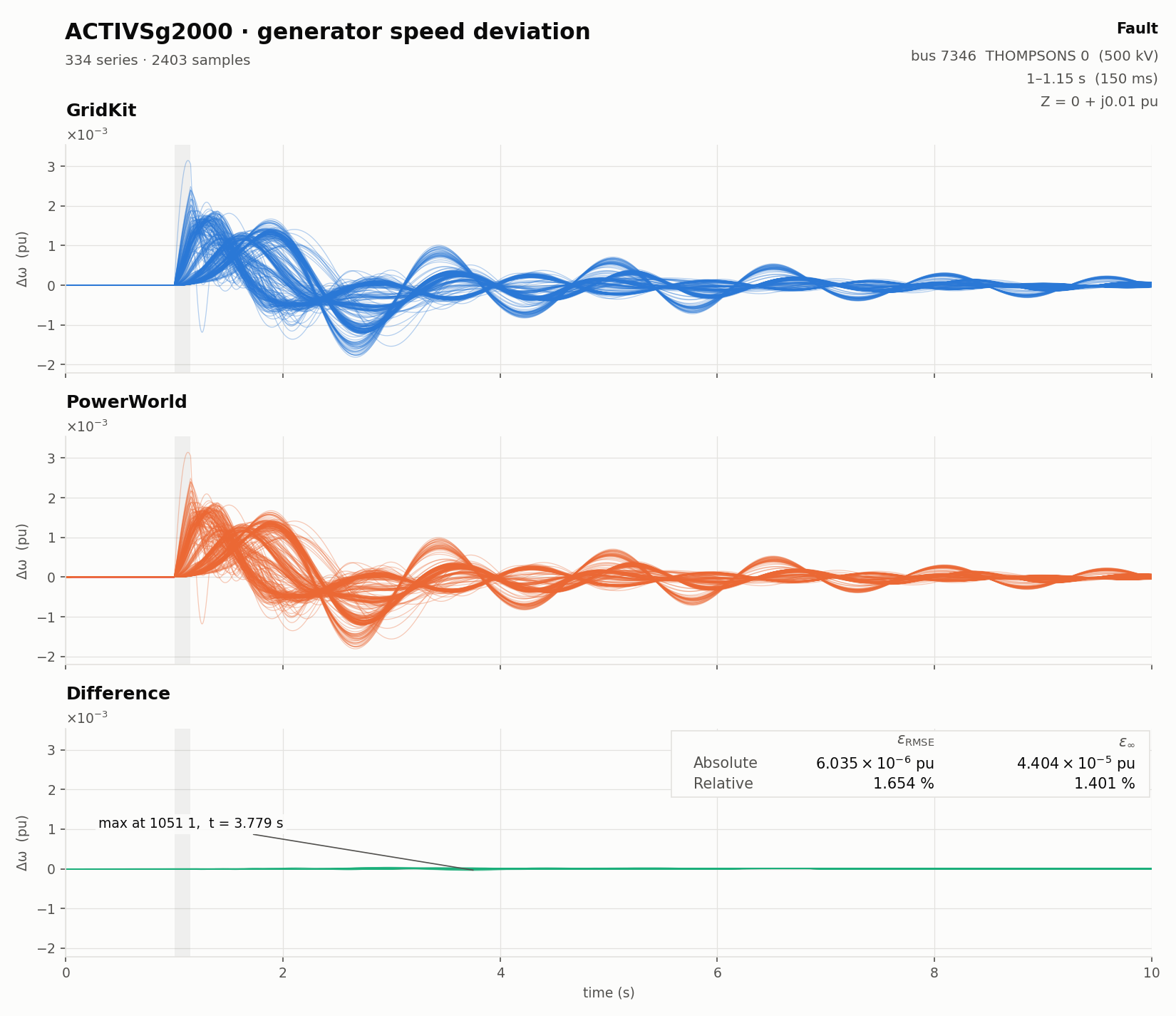

Generator speed deviation Generator real power Generator reactive power Bus voltage magnitude
