ACTIVSg500 Validation

This study uses the reusable ACTIVSg500 case.

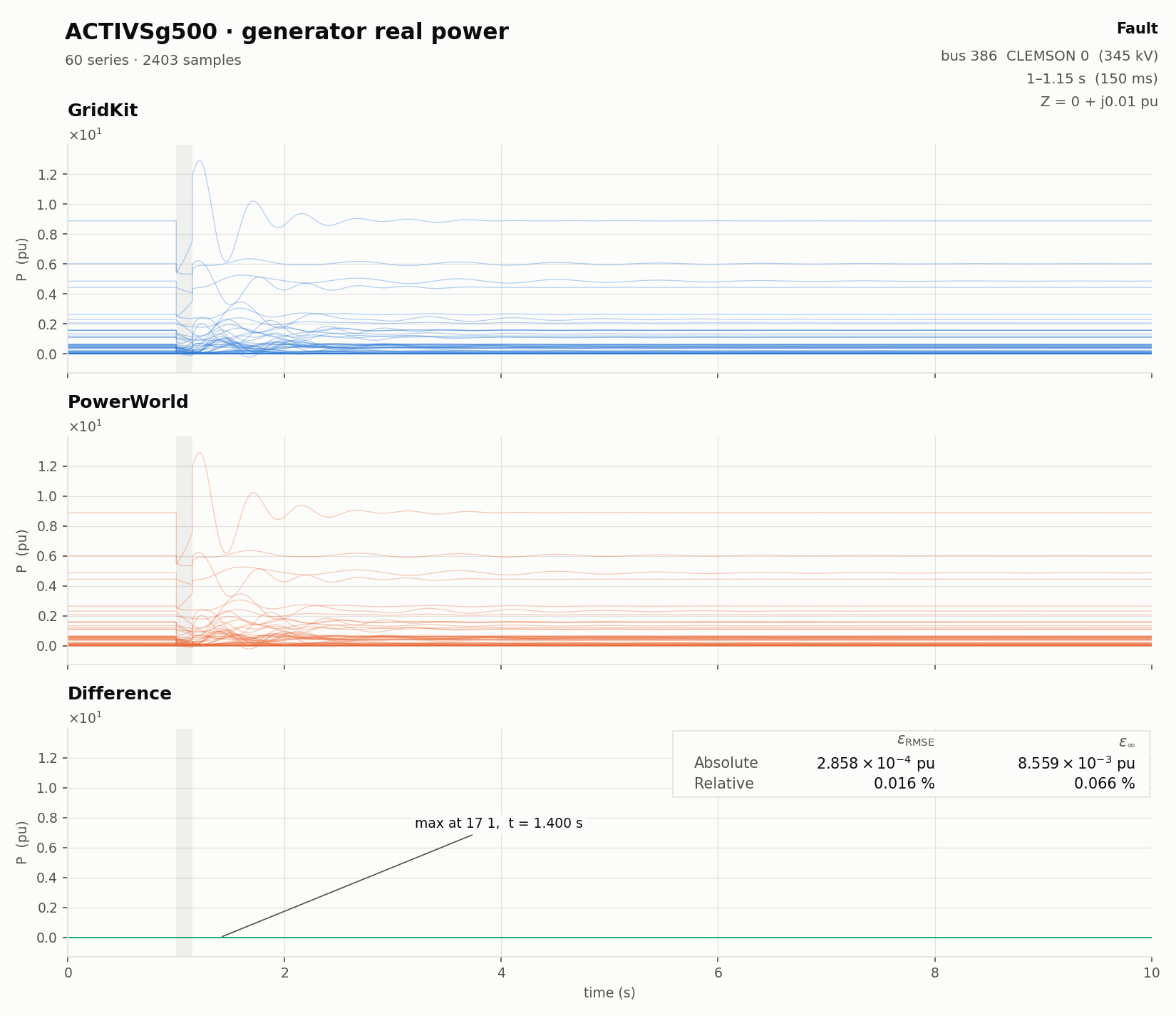

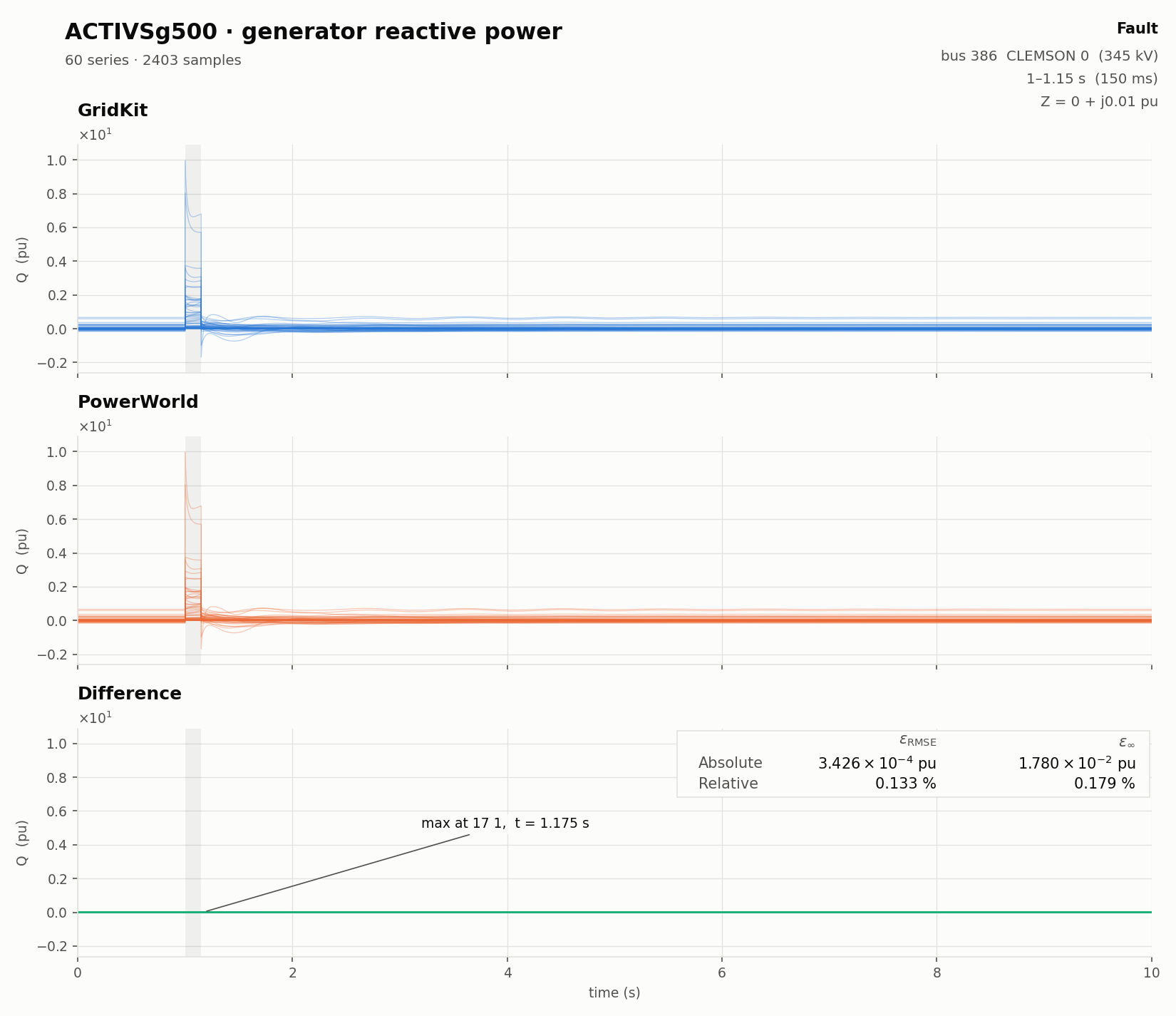

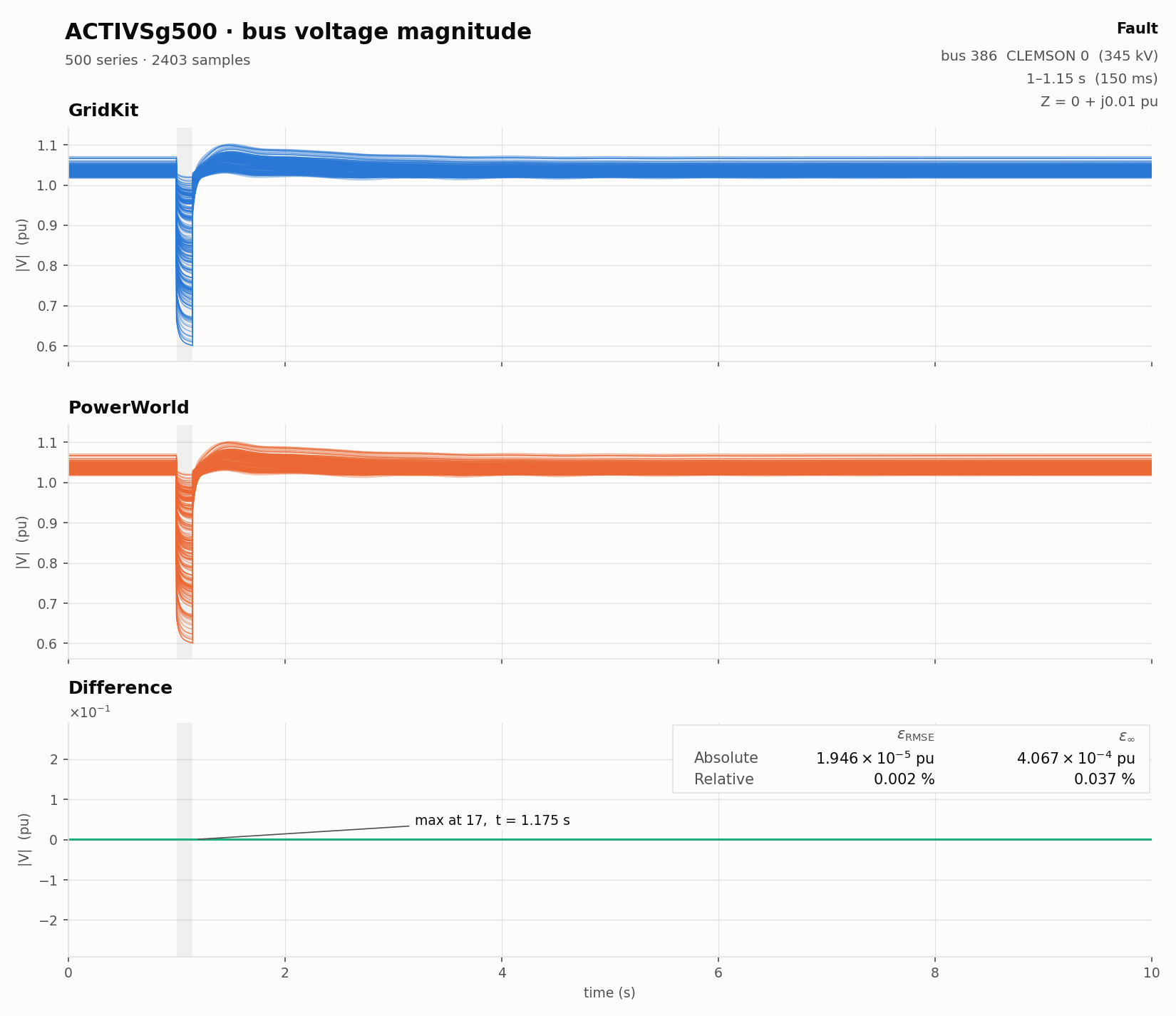

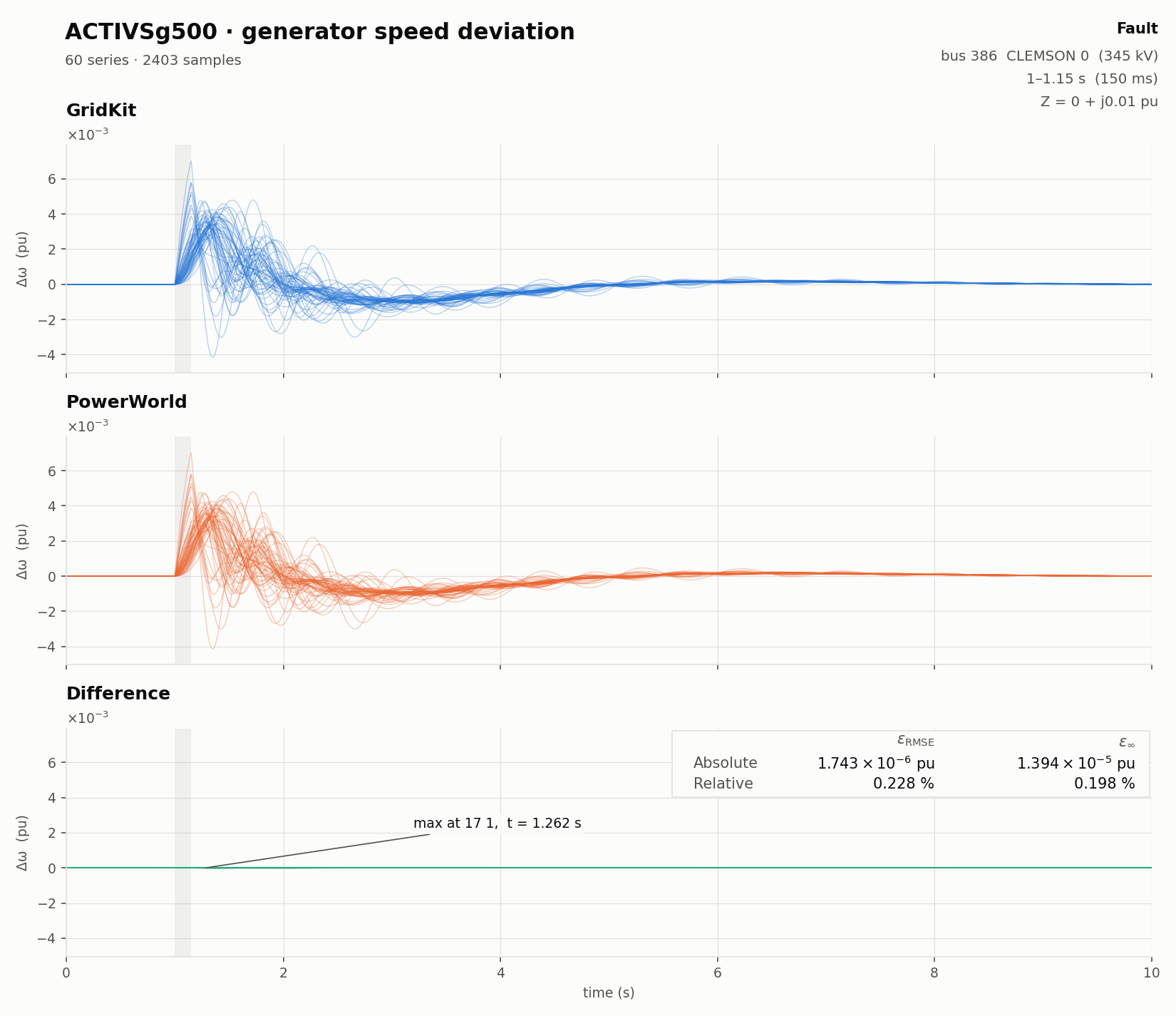

Generator speed deviation Generator real power Generator reactive power Bus voltage magnitude
