Hawaii Validation

This study uses the reusable Hawaii case.

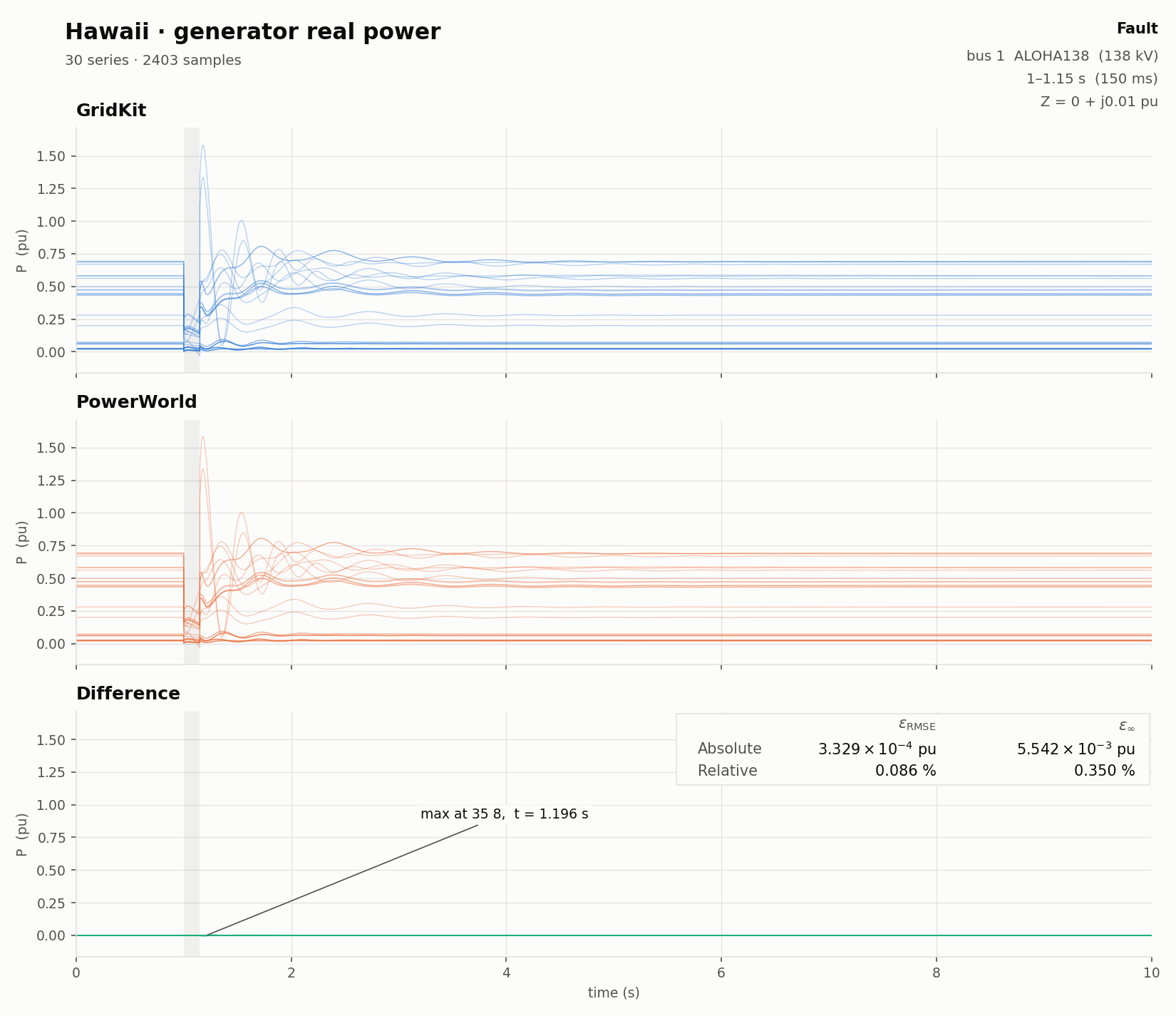

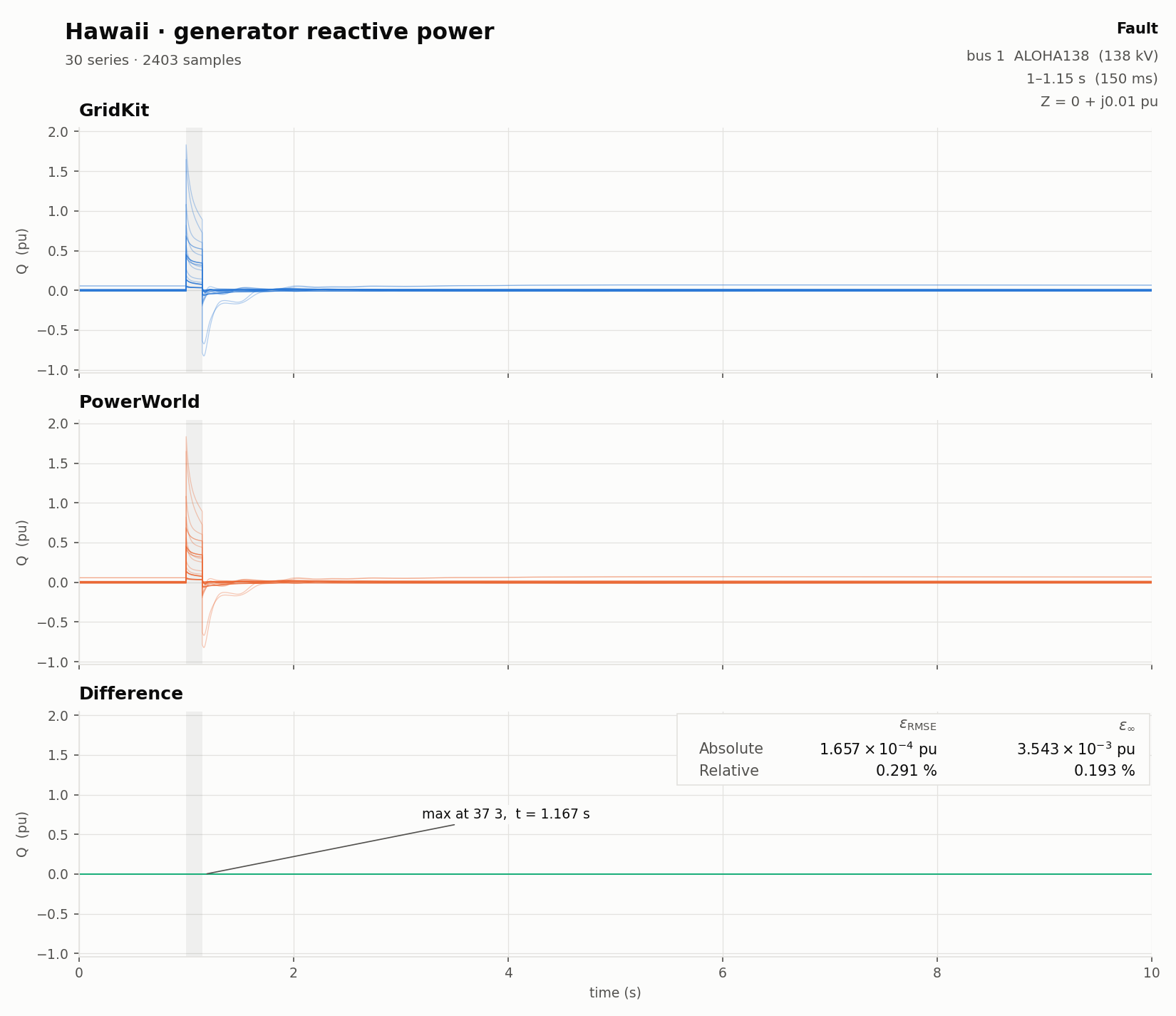

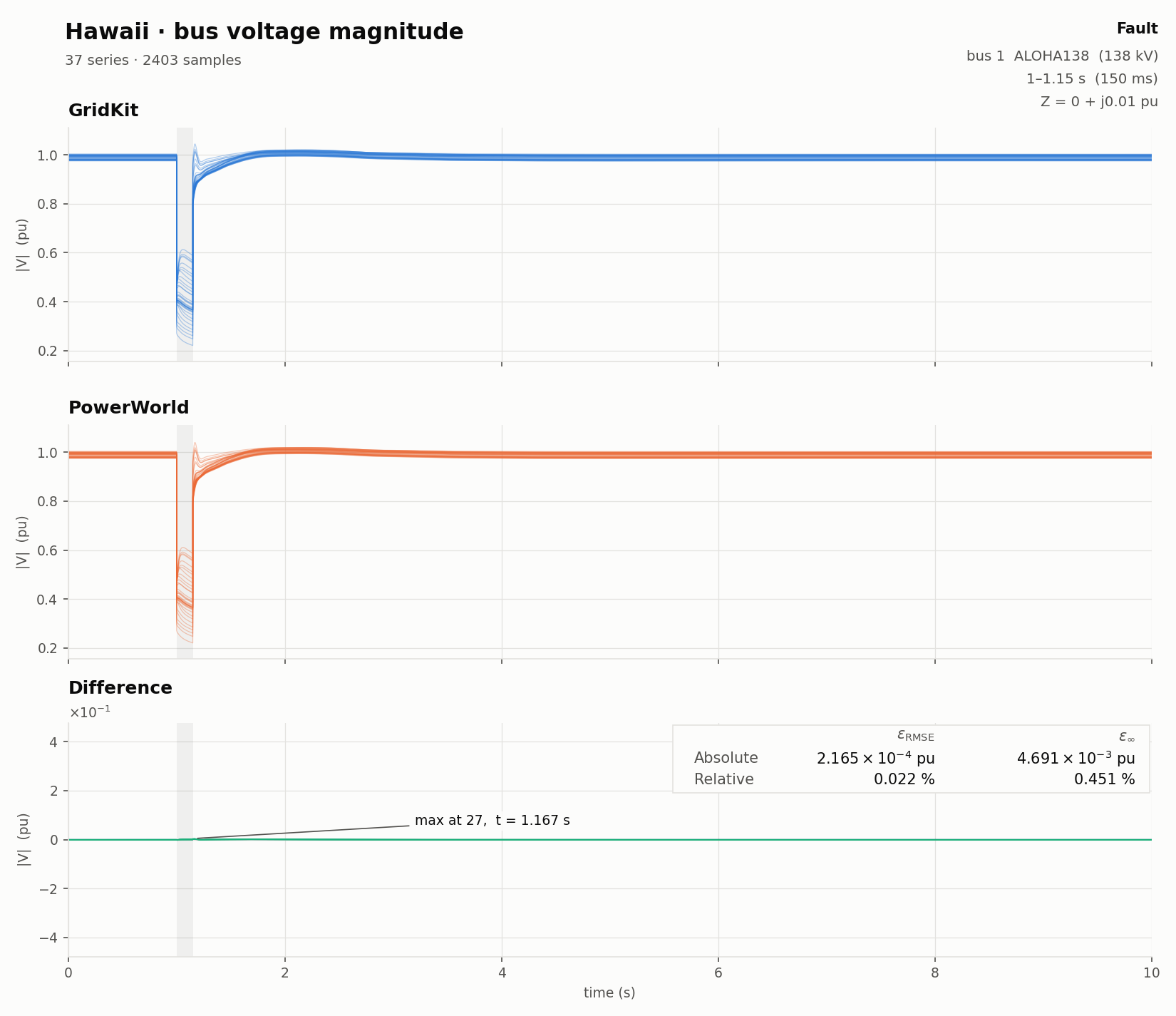

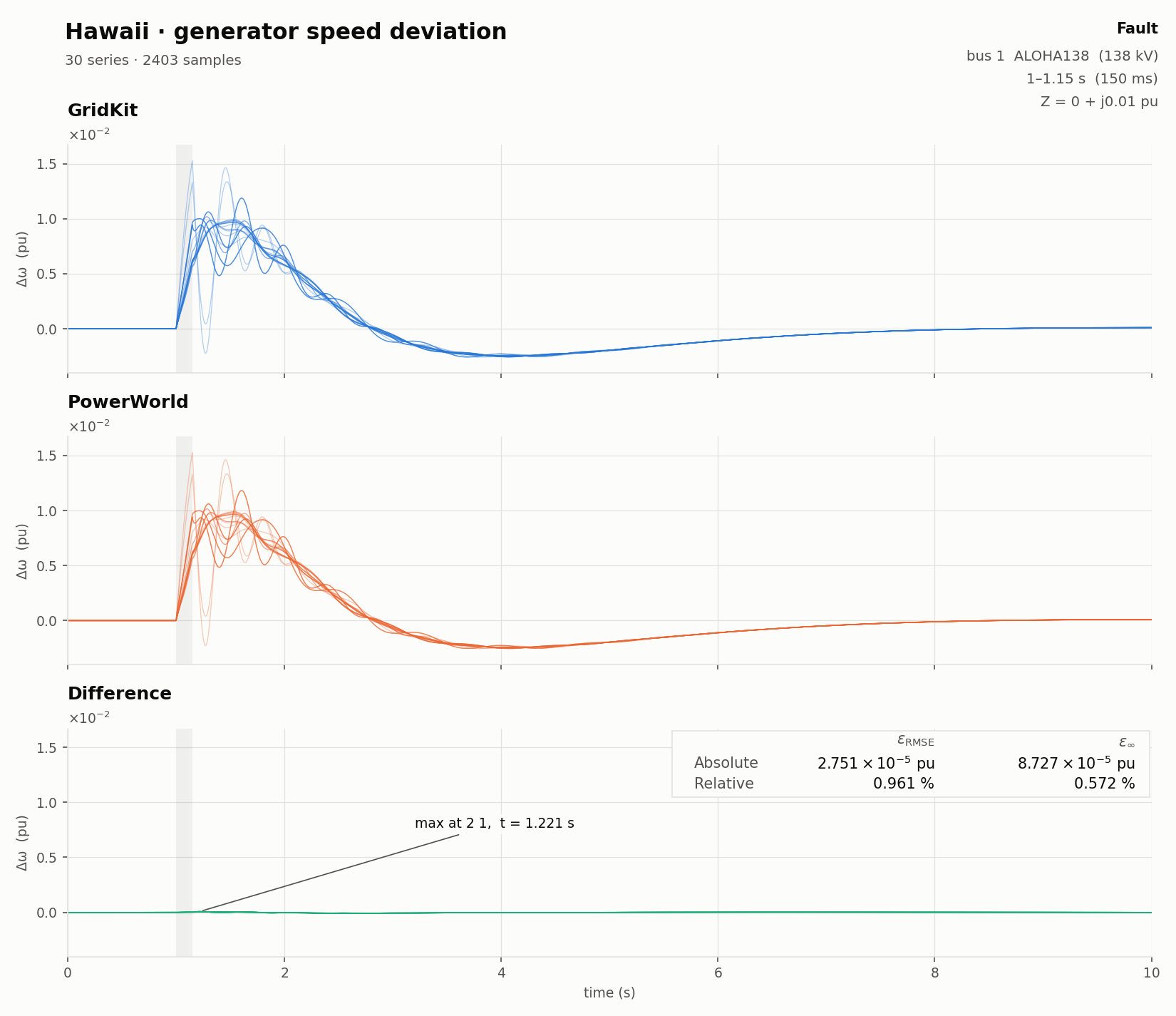

Generator speed deviation Generator real power Generator reactive power Bus voltage magnitude
