ACTIVSg200 Validation

This study uses the reusable ACTIVSg200 case.

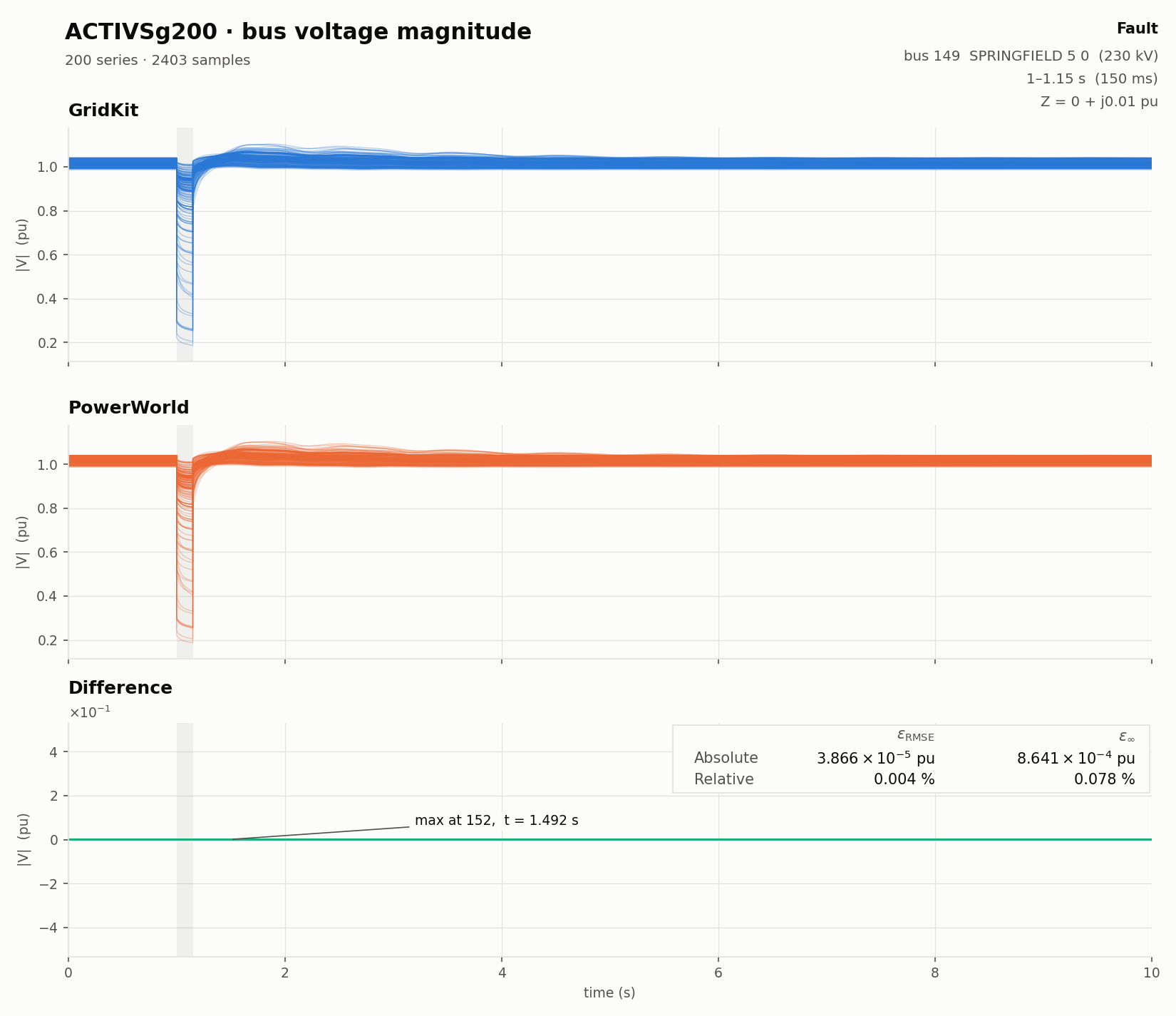

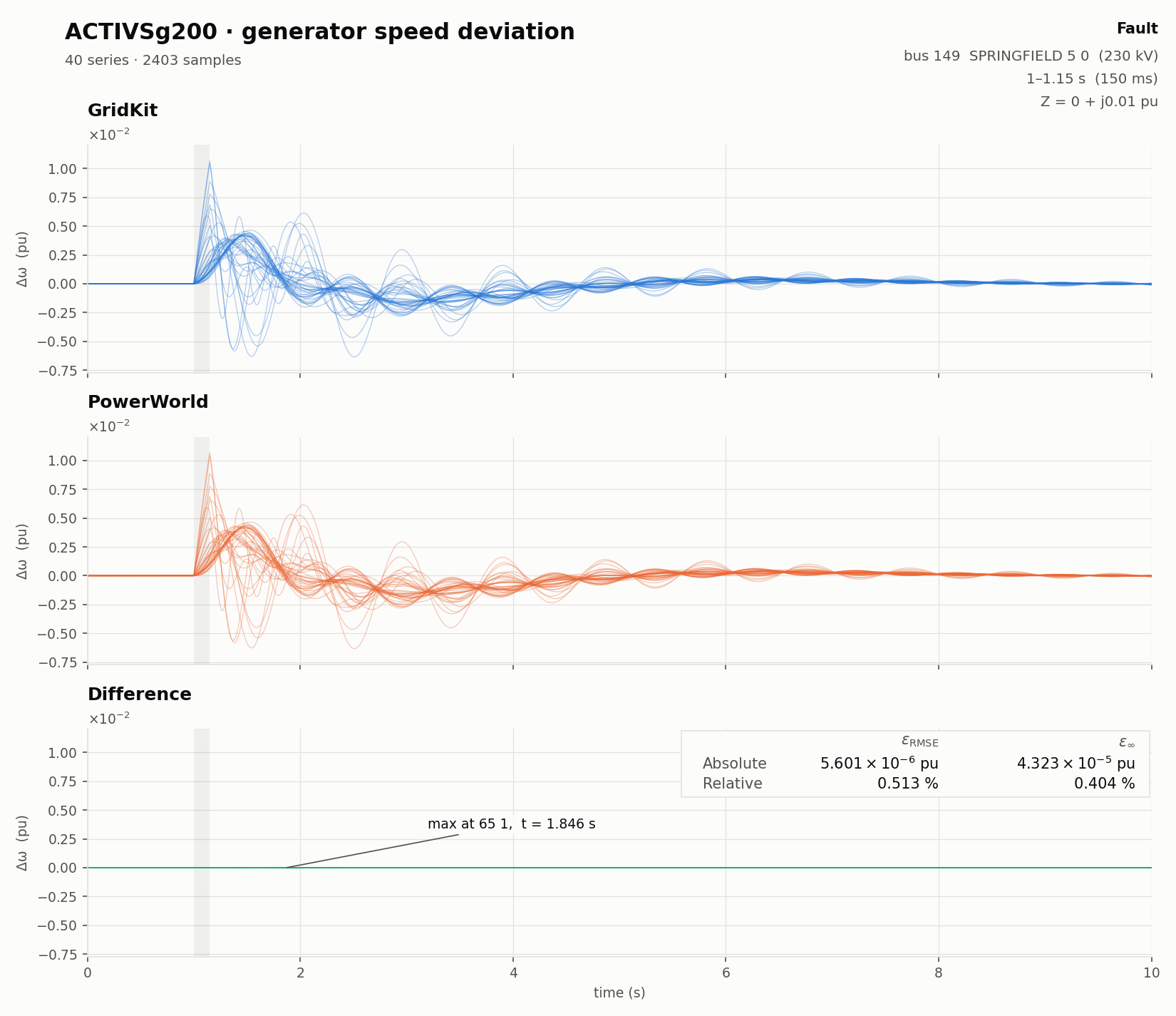

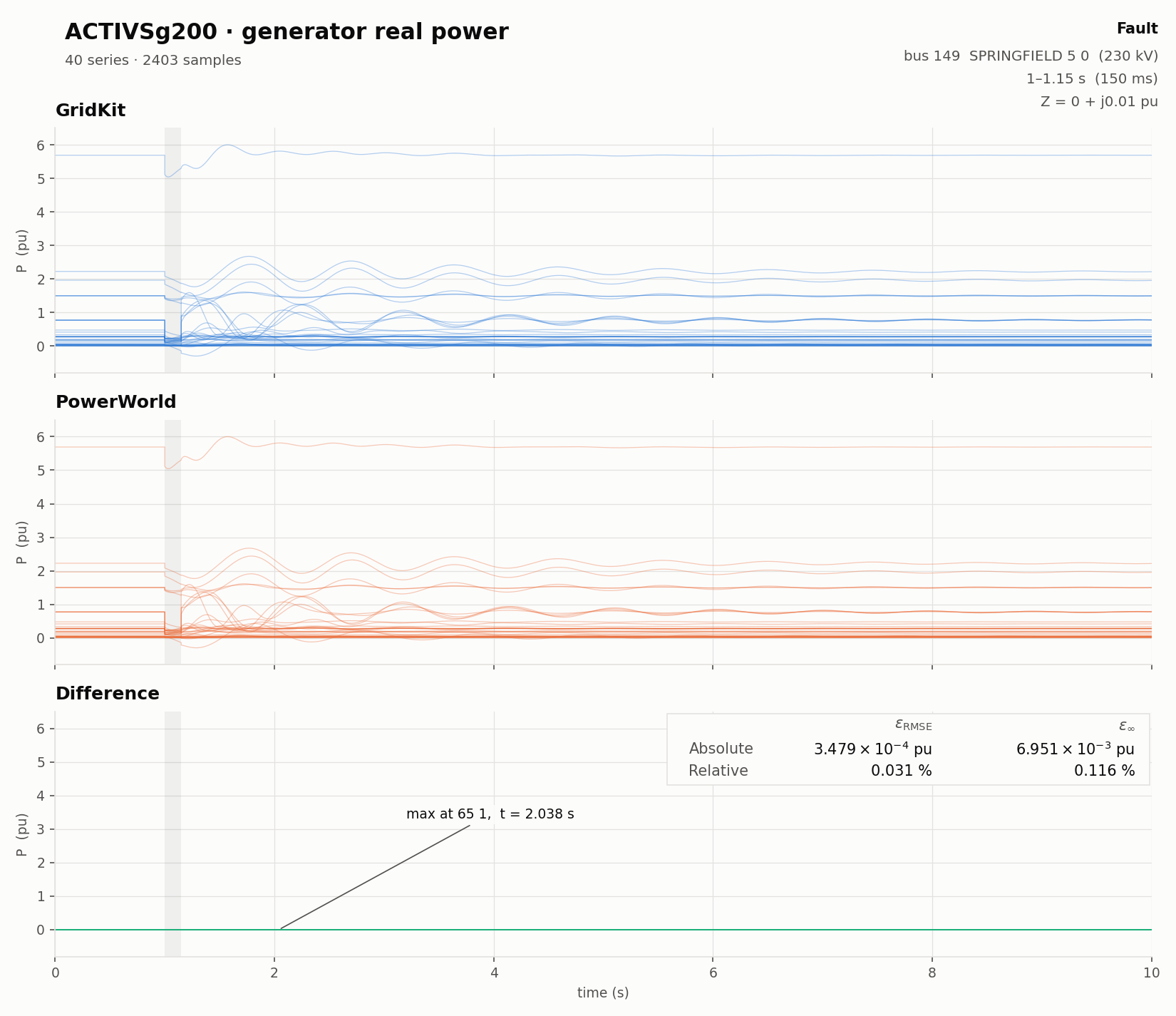

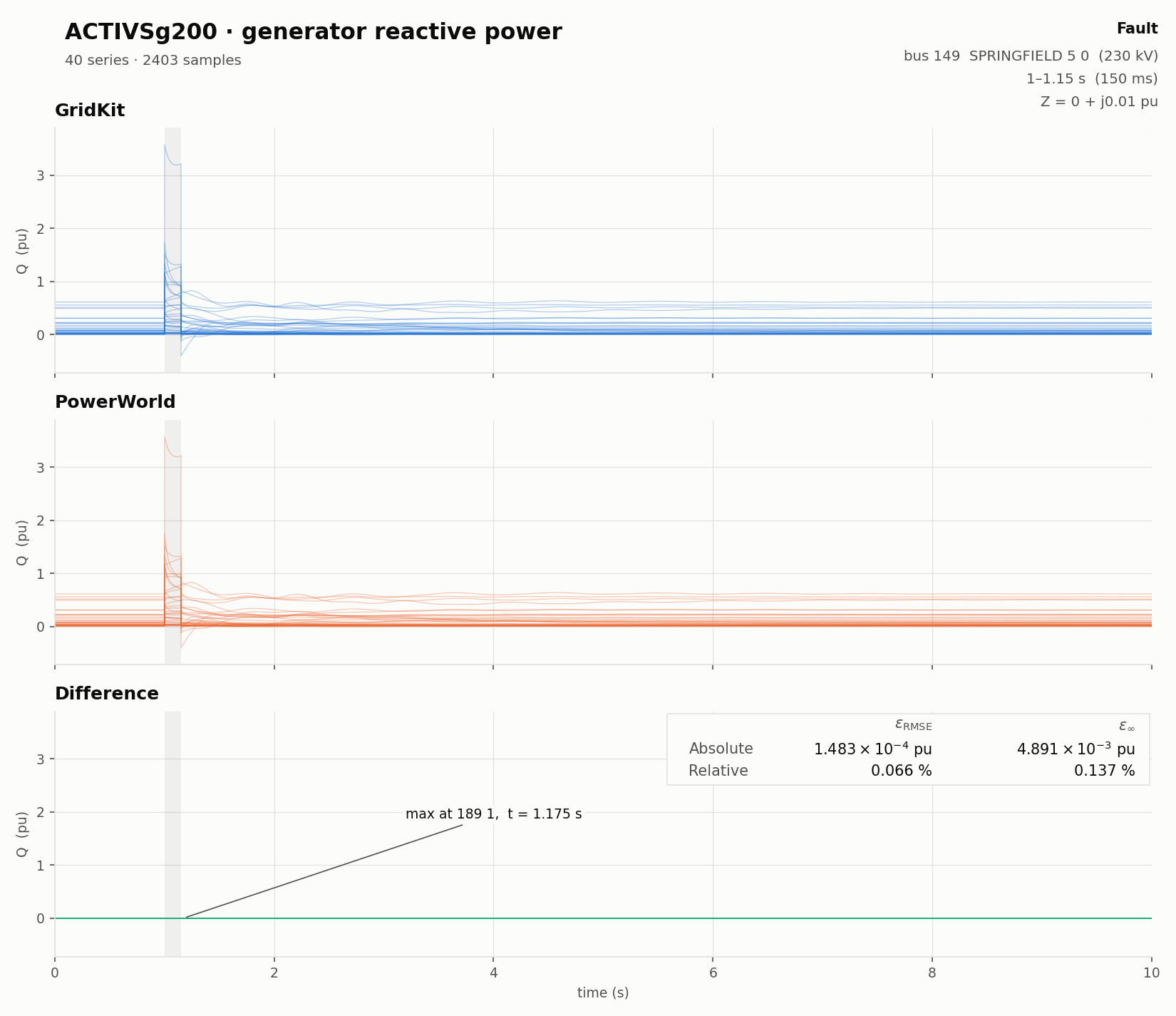

Generator speed deviation Generator real power Generator reactive power Bus voltage magnitude
